The Problem:
Designing individual parts from scratch each time in Catia V5 is time consuming especially when the parts are based on standard shapes or raw materials.
Having to set all the names on the properties is very time consuming and prone to user error.
Trying to manage the files for hundreds of parts can be difficult to say the least.
Tracking down errors related to file management takes away from valuable design time.
The Solution:
GenStructure not only allows you to create standard tool design geometry quickly and effortlessly it also allows you to modify that geometry just by changing a parameter. All parameters that drive the geometry are automatically imbedded into the properties of the part.
GenStructure takes care of all your naming conventions based on a base number.
Imagine being able to add one of 6 different types of raw material shapes to your design just by selecting what you want and where you want it and entering a few values which drive the parameters. You can also create your own profiles to extrude and then select them as a 7th option.
All of this while letting the system generate the next availabe dash number for parts and automatically filing it as that part number inside the parent folder of the design.
Add one of two types pf products to your design an Assembly or Weldment. Each with their own numbering system and automatically filed inside the parent folder of the design.
Bring catalog item into your design from anywhere and have them automatically filed inside the parent folder of the design.
Quite simply GenStructure eliminates all the headaches of designing tools in Catia V5 and greatly improves your efficiency and accuracy.
Pricing: Based on options and customization required.
Please contact us for more info:
Structural Shapes Included:
Each shape is parametrically driven.

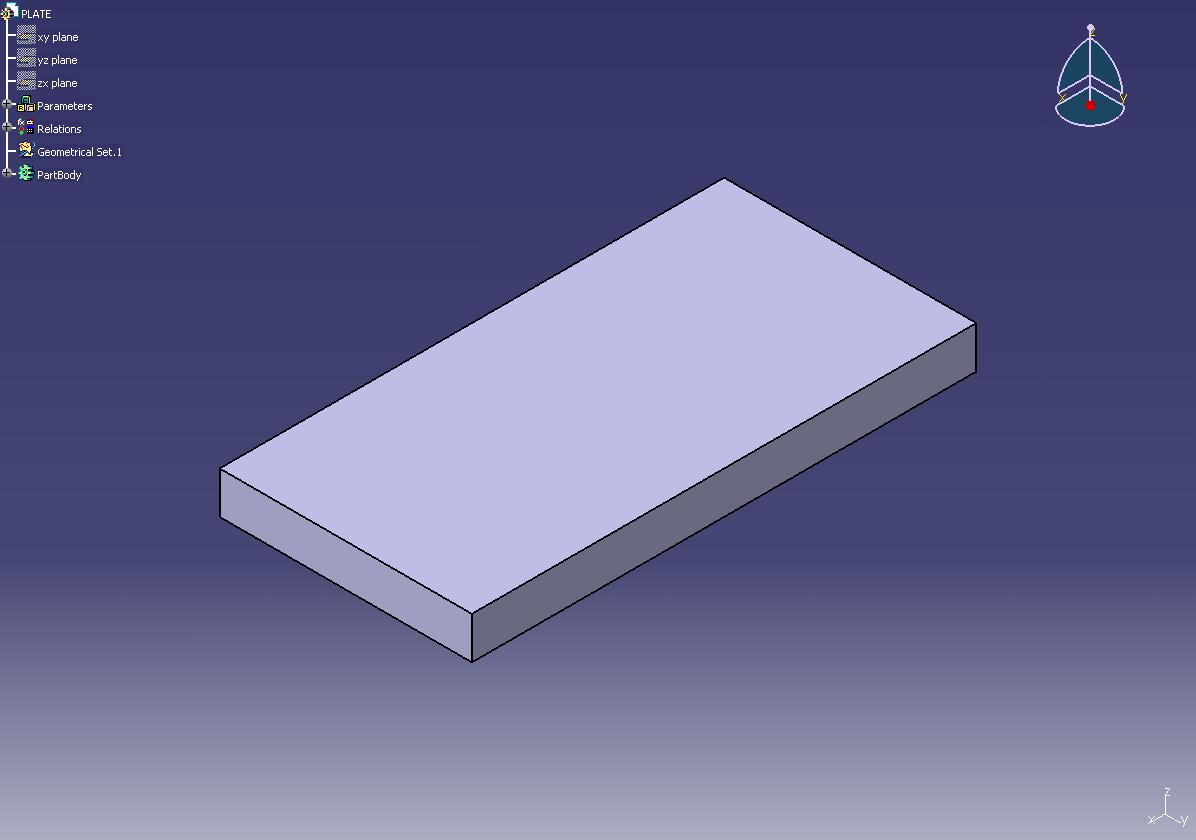

Plate: All materials

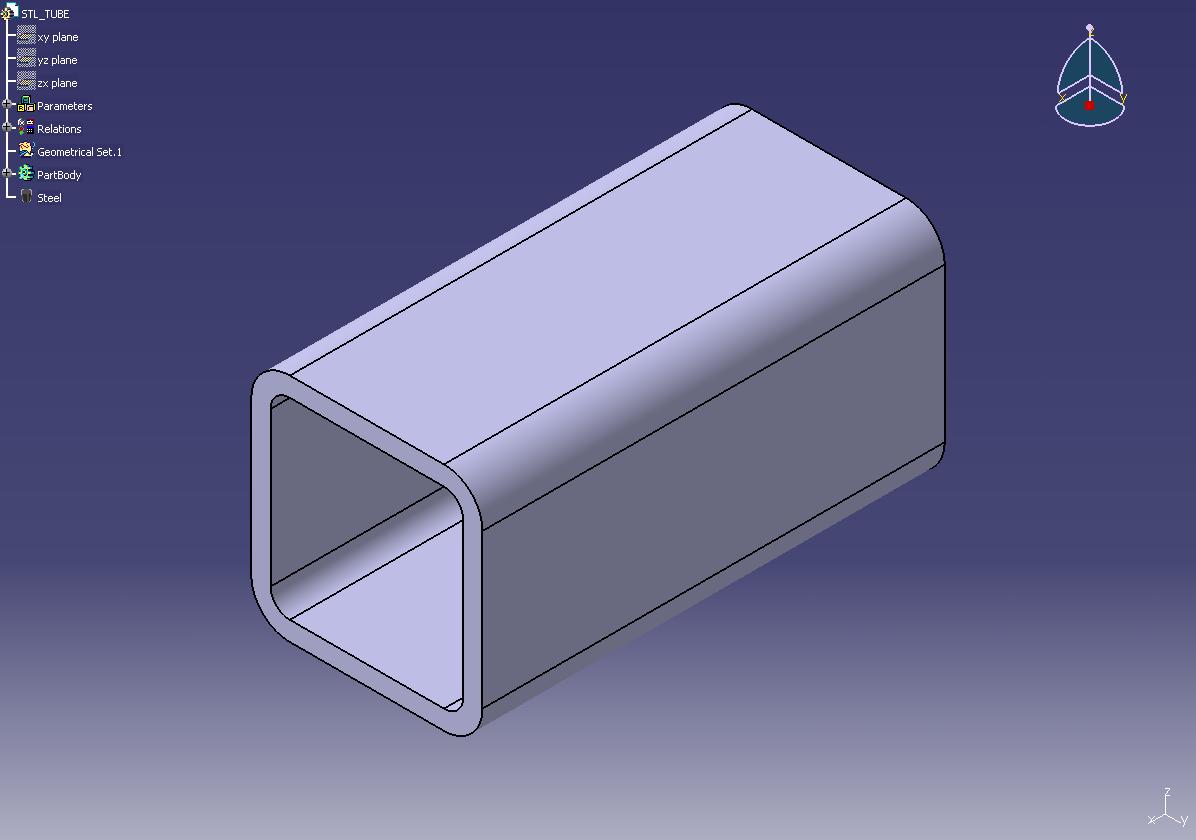

Rectangular Tubing: Steel & Aluminum

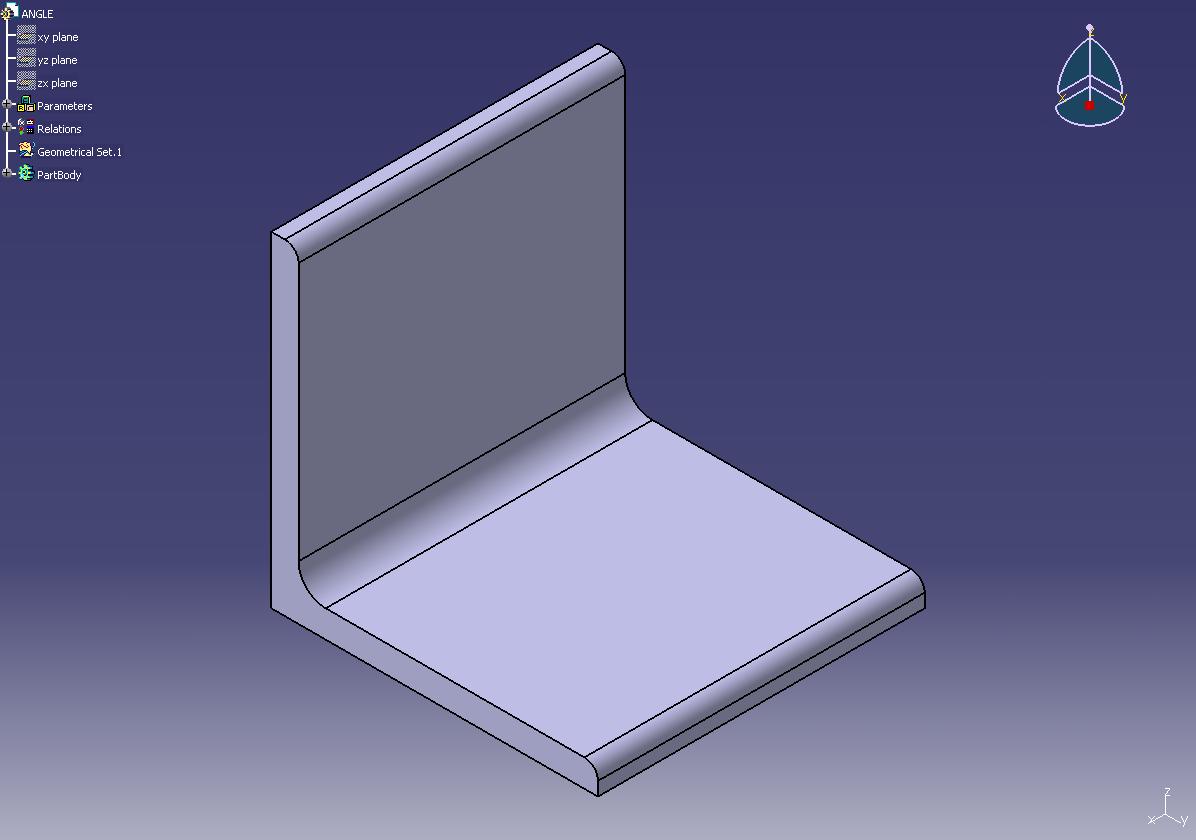

Angle: Steel & Alumium

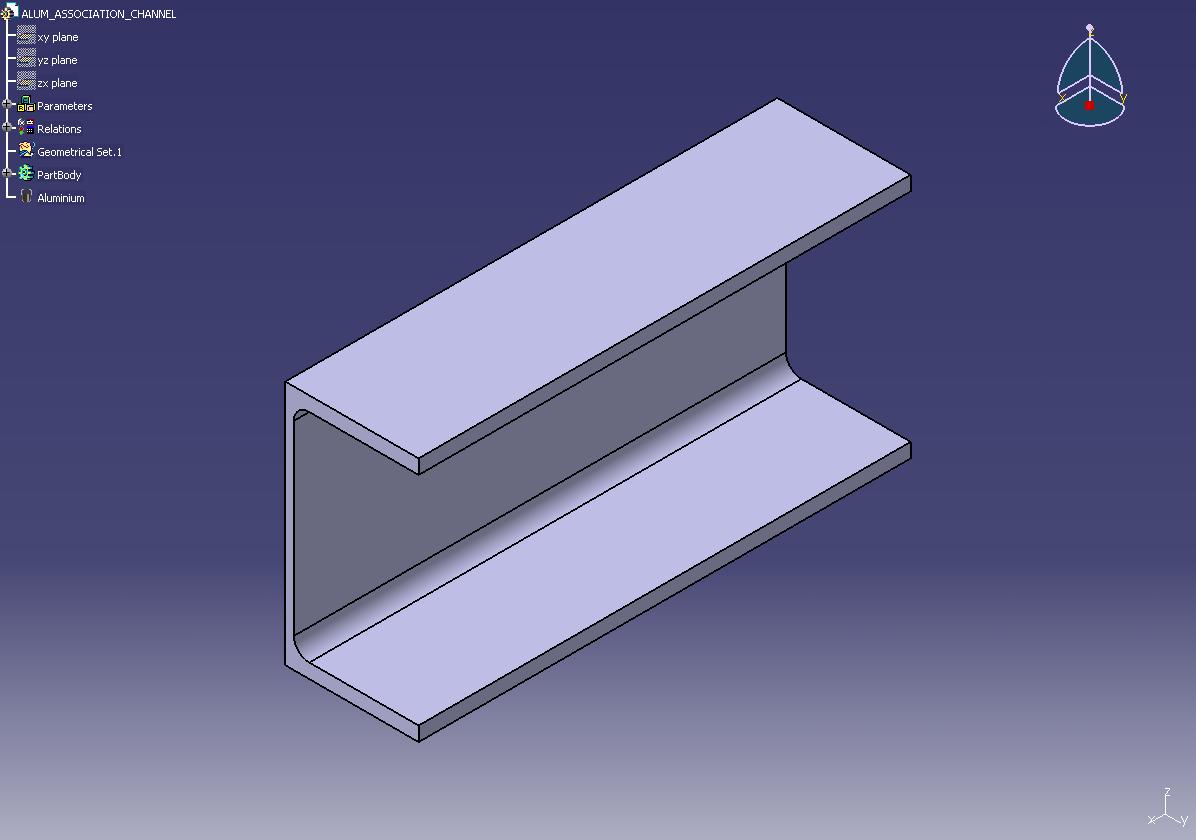

Channel: Aluminum Association

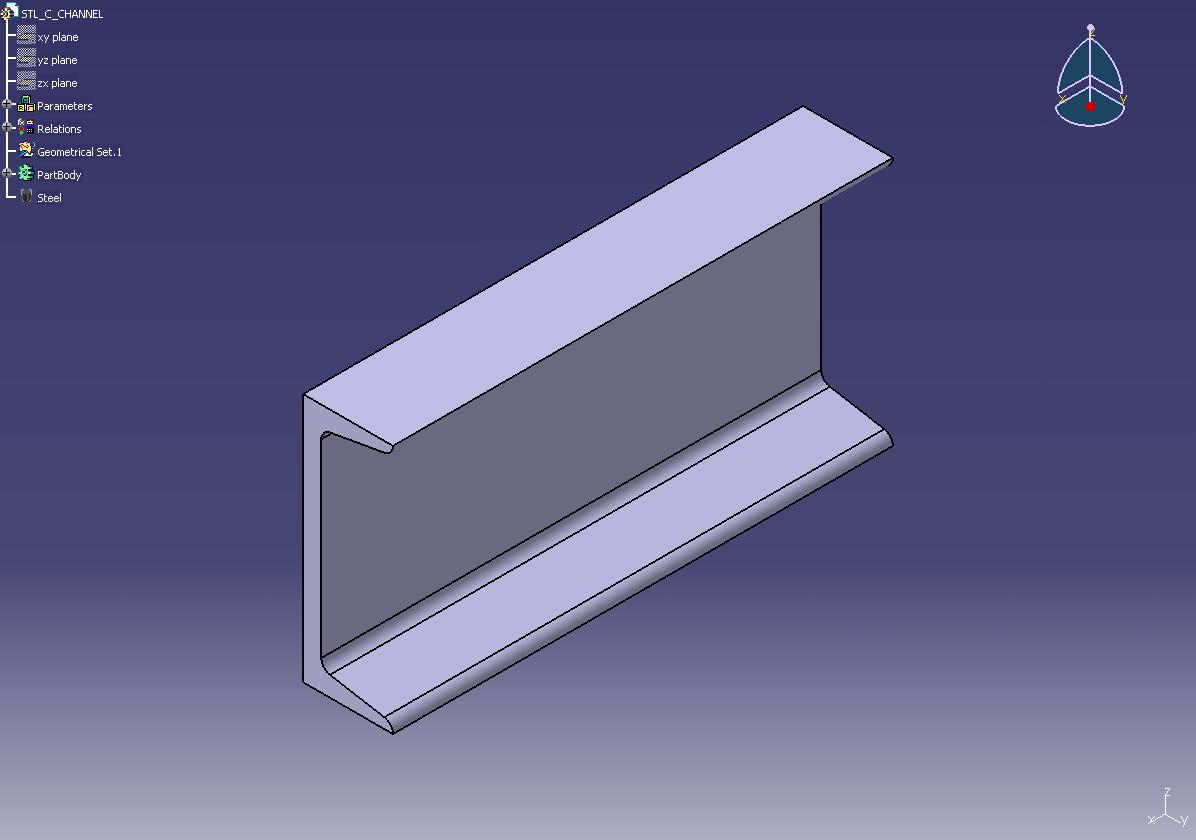

& Steel C Channel

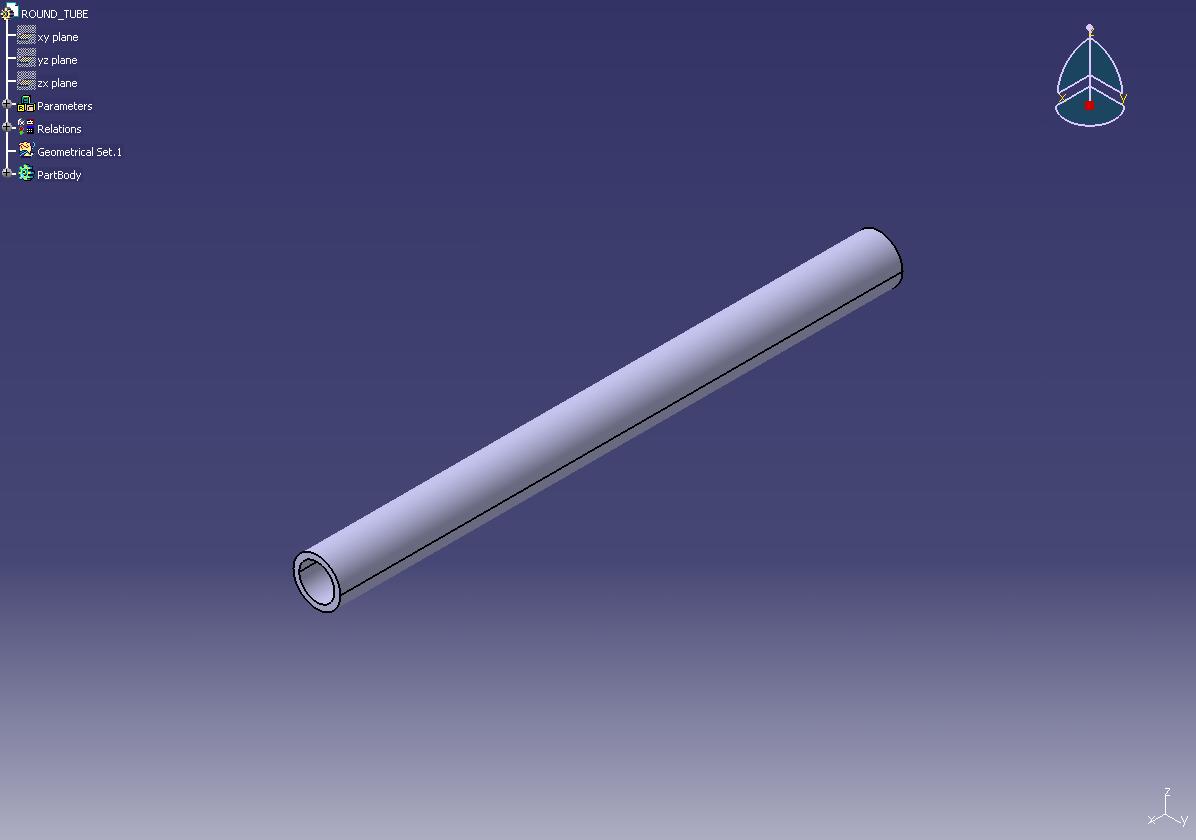

Round Tube: Steel & Aluminum

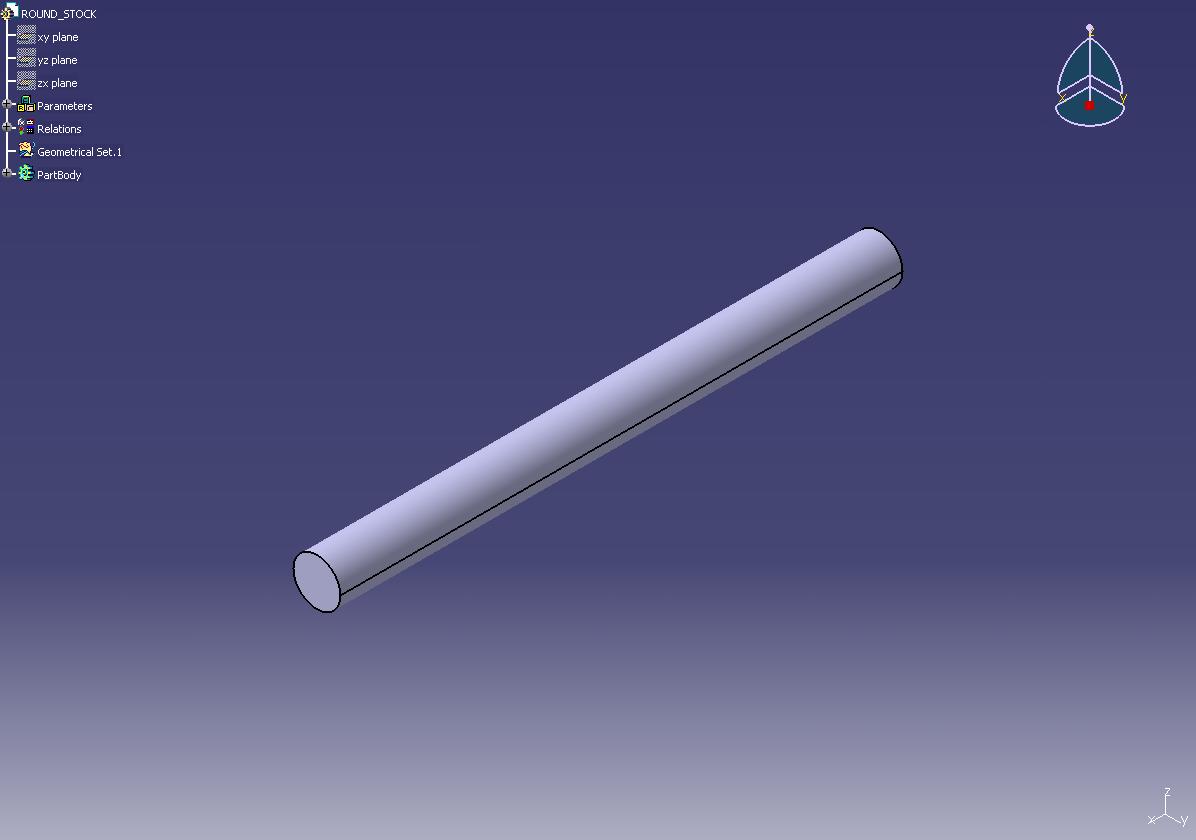

Round Stock: Steel & Aluminum
User Profile: Any shape that you create.
